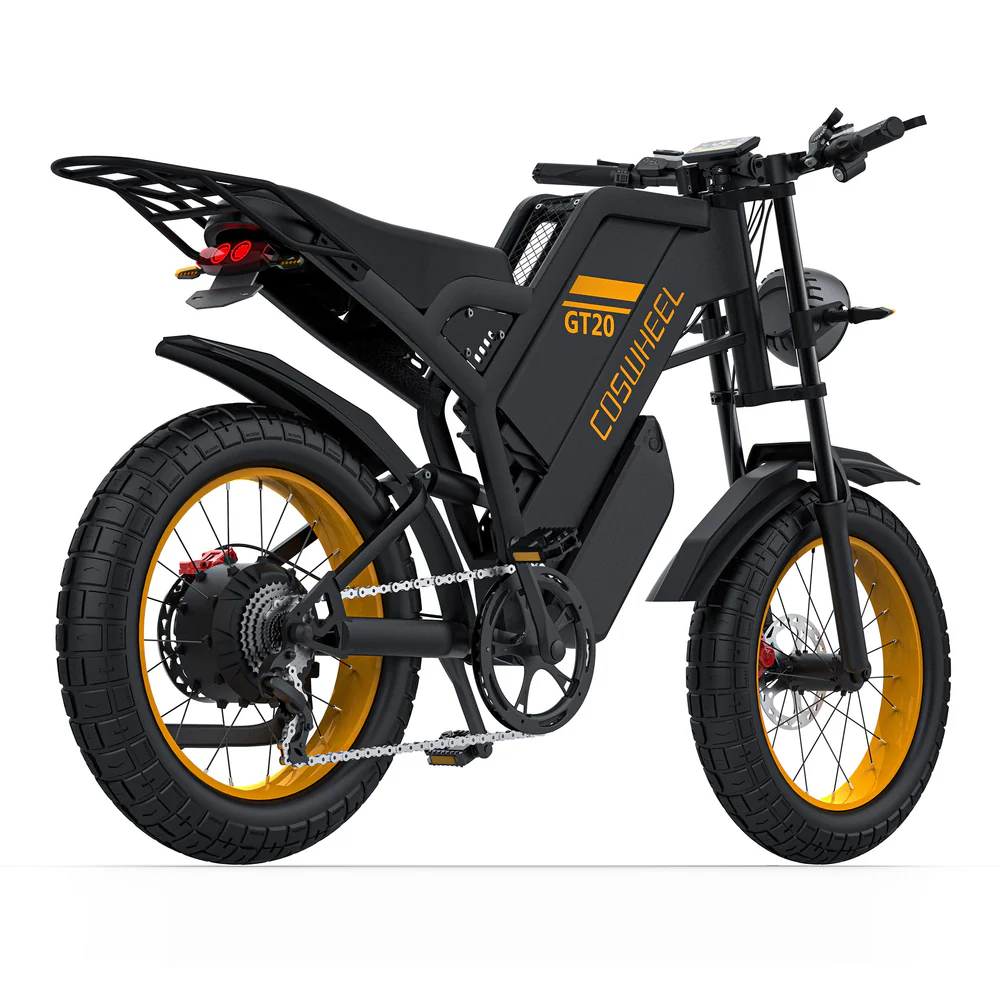

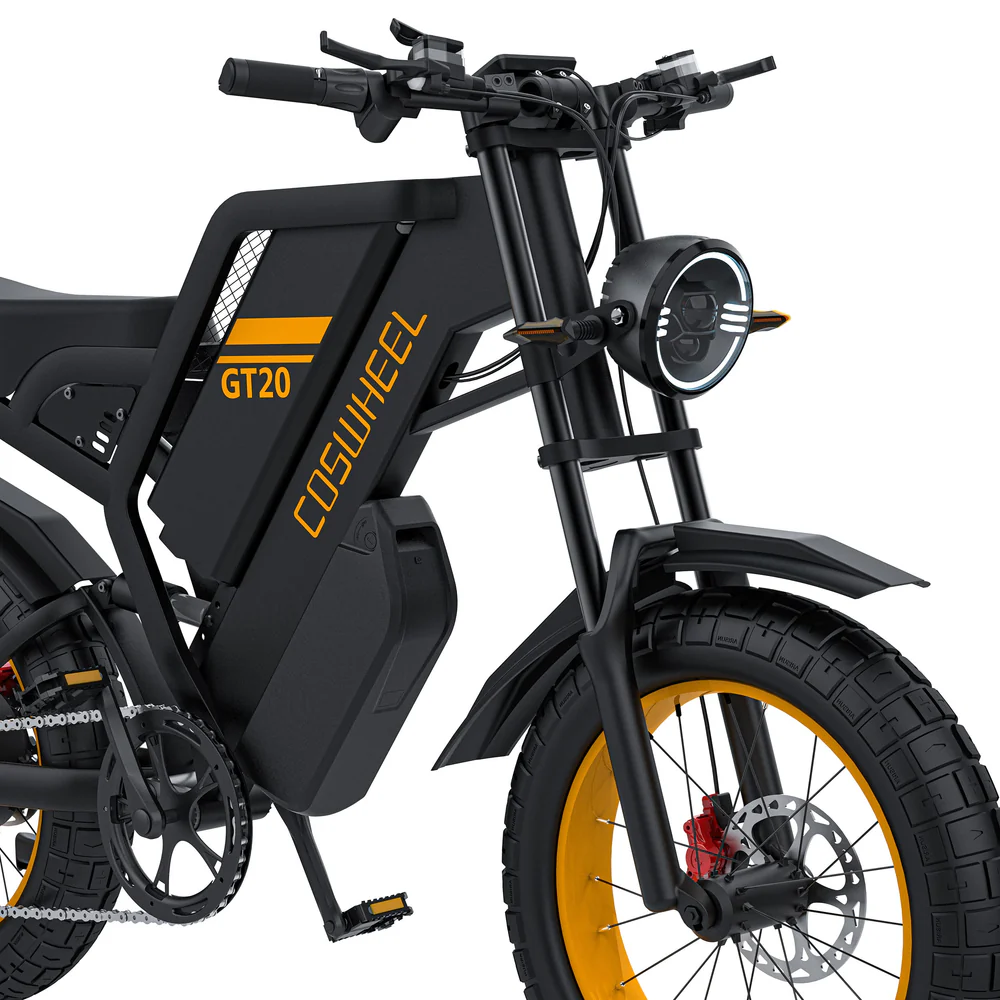

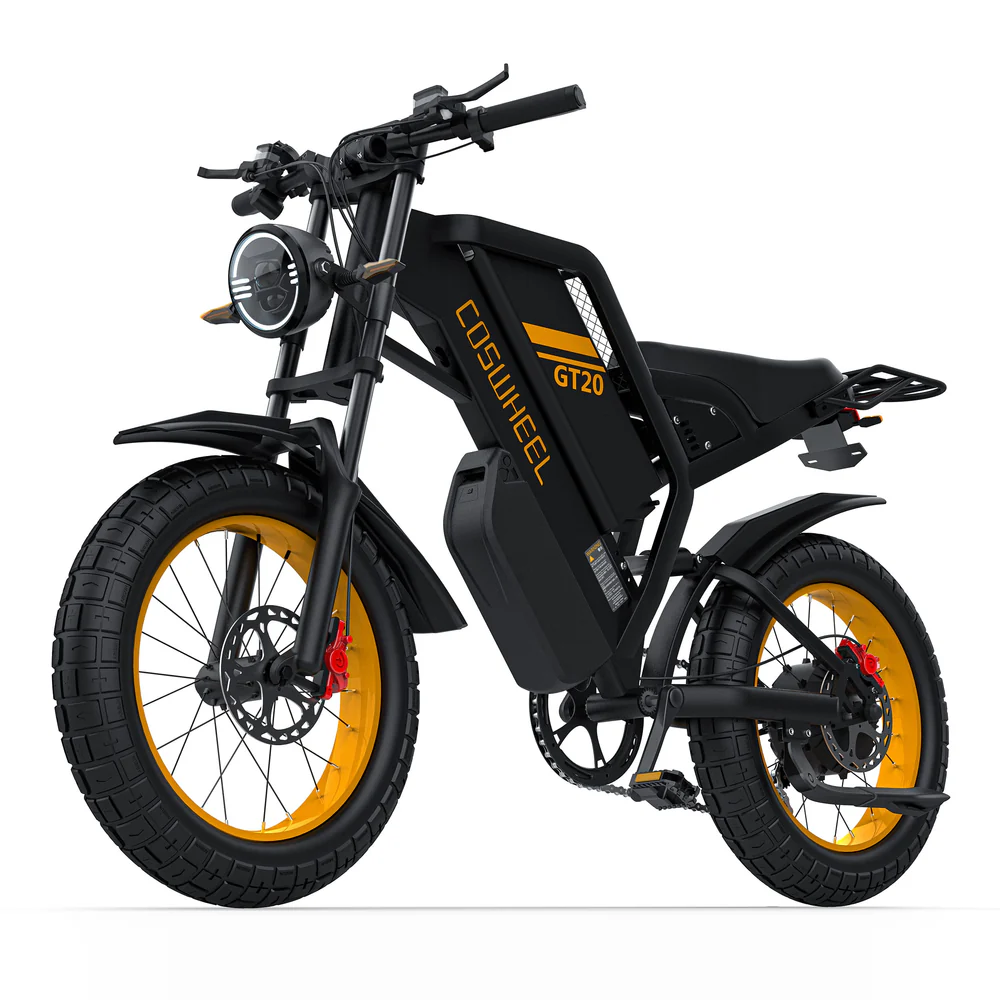

Electric Bike COSWHEEL GT20 MAX

60V, 1500W (Peak 2000W), 40Ah (25Ah + 15Ah Samsung Battery)

The COSWHEEL GT20 MAX is a high-performance electric bike designed for riders who demand power, range, and comfort. With its advanced dual-battery system, powerful motor, and durable frame, the GT20 MAX is perfect for long-distance adventures and tackling challenging terrains.

Key Features

• Dual-Battery System for Unmatched Range
  Equipped with a 60V 25Ah + 15Ah Samsung Battery, the GT20 MAX offers an impressive range of 80+ miles (128 km) in throttle-only mode and up to 145 miles (233 km) with pedal assist. The combined 2400Wh energy capacity ensures extended rides without frequent recharges.
• High-Powered Motor
  The 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor delivers an impressive 120N.m torque, allowing the bike to reach speeds of 40 mph (65 km/h) and climb steep inclines effortlessly.
• Advanced Suspension System
  Enjoy superior comfort with the 20" shoulder shock-absorbing front suspension (80mm travel) and a rear suspension rated at 850 pounds (180mm travel), ensuring a smooth ride even on rough terrains.
• Enhanced Braking System
  The double-piston oil brakes with 180mm stainless steel brake discs provide precise and reliable stopping power, ensuring safety at high speeds.
• Off-Road Ready Tires
  Fitted with ARISUN Off-Road Tires (20" x 4.0") featuring a Meimeng Tire and PVC Line, the GT20 MAX offers exceptional grip and durability for diverse terrains.
• Ergonomic and Durable Design
  Built with a hydroformed triple-butted 6061-T6 aluminum alloy frame, the GT20 MAX is lightweight yet robust, supporting riders up to 330 lbs (150 kg). Its split handlebar design adds to rider comfort and control.
• Intelligent Electronics
  The easy-read LCD display provides real-time stats like speed, battery level, and pedal assist mode. With 5 levels of pedal assist and a thumb throttle, the bike adapts seamlessly to your riding needs.

Specifications

Performance

• Top Speed: 40 mph (65 km/h)
• Range:
  • Throttle-only: 80+ miles (128 km)
  • Pedal assist: 145 miles (233 km)

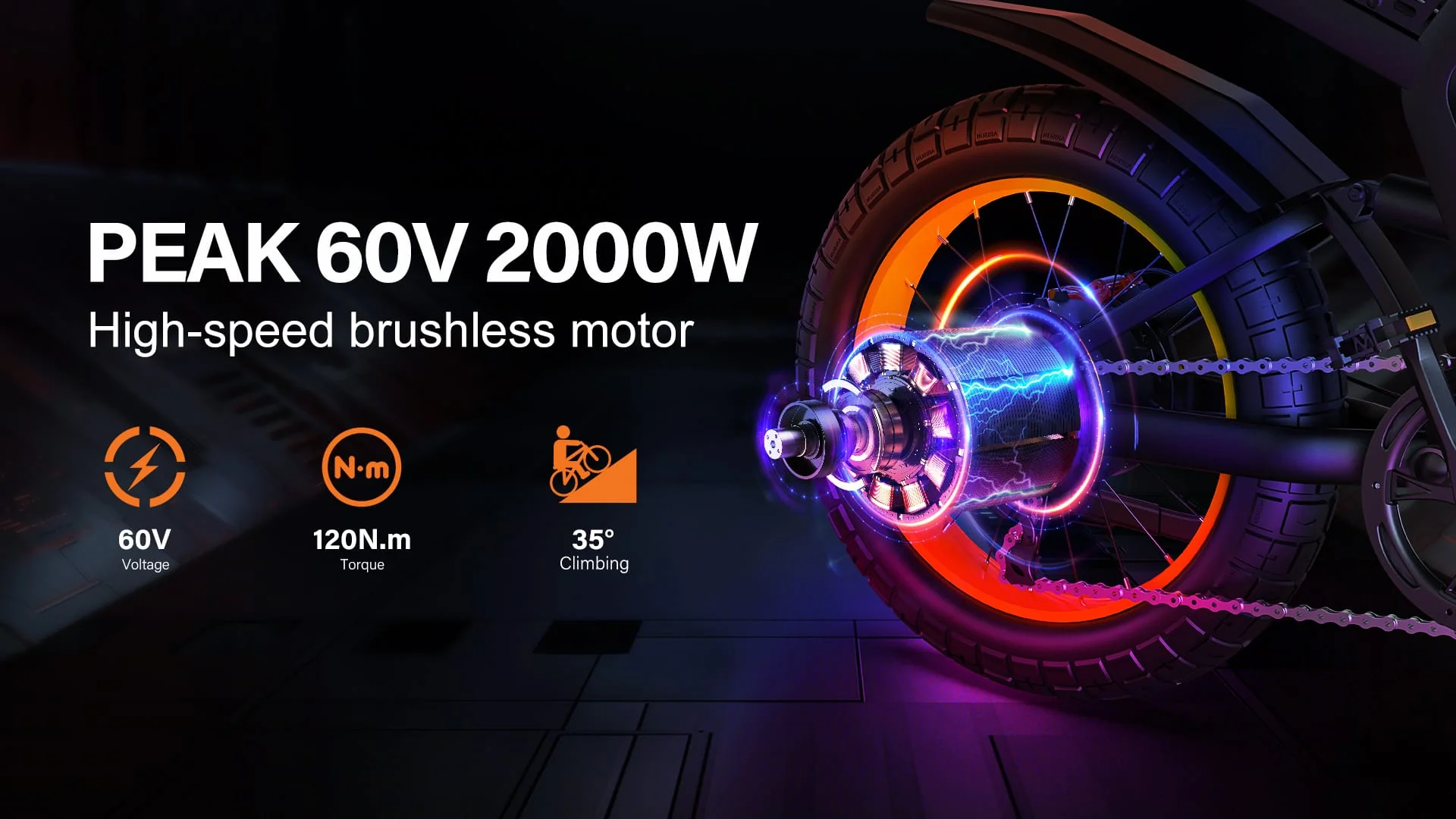

• Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor
• Torque: 120N.m

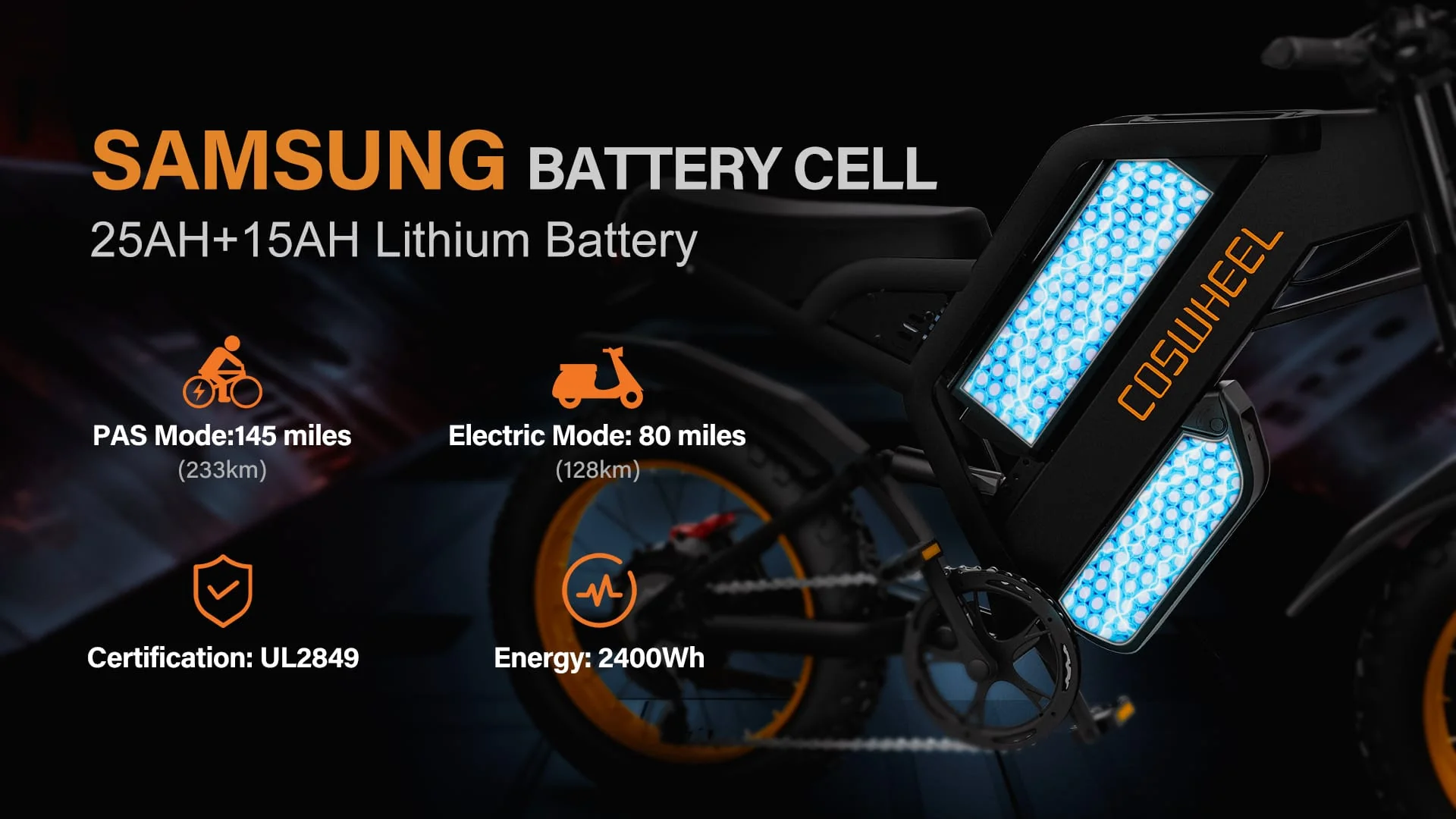

• Battery: 60V 25Ah + 15Ah Samsung Lithium (18650 Cells)
• Energy Capacity: 2400Wh

Build and Suspension

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminum Alloy
• Front Suspension: 20" Shoulder Shock Absorbing (80mm travel)
• Rear Suspension: Adjustable, 850 pounds (180mm travel)

Brakes and Tires

• Brakes: Double-piston oil brakes, 180mm stainless steel discs
• Tires: ARISUN Off-Road Tire (20" x 4.0") with Meimeng Tire + PVC Line

Electronics

• Controller: 60V 35A
• Charger: 60V5A (Charging Time: 3.5-8.0 hours)

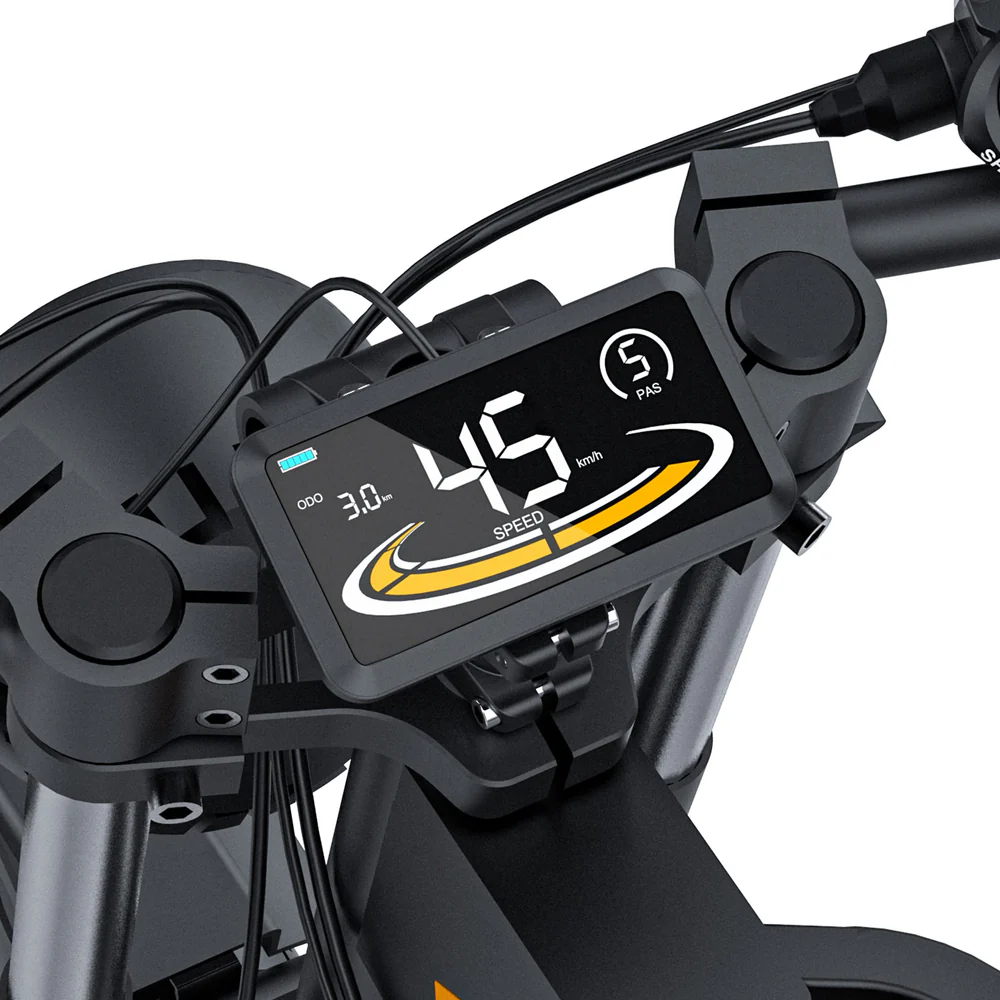

• Display: Easy Read LCD Display
• Lights:
  • Front: Classic Angel Eye Headlight (120 LUX)
  • Rear: LED

Dimensions and Weight

• Overall Size: 180 x 69 x 106 cm (70.9" x 27.2" x 41.7")
• Package Size: 151 x 35 x 92 cm (59.4" x 13.8" x 36.2")
• Seat Height: 83 cm (32.6")
• Wheelbase: 121.5 cm (47.8")
• Handlebar Width: 69 cm (27.2")
• Bike Weight: ≥45 kg (99 lbs with battery)

Capacity

• Maximum Load: 150 kg (330 lbs)
• Safe Load: 120 kg (265 lbs)

Why Choose COSWHEEL GT20 MAX?

The COSWHEEL GT20 MAX is the ultimate electric bike for riders seeking long-range performance and superior comfort. Its dual-battery system, powerful motor, and advanced suspension make it perfect for city commutes and off-road adventures.

Push the limits with the COSWHEEL GT20 MAX – where power meets endurance.
